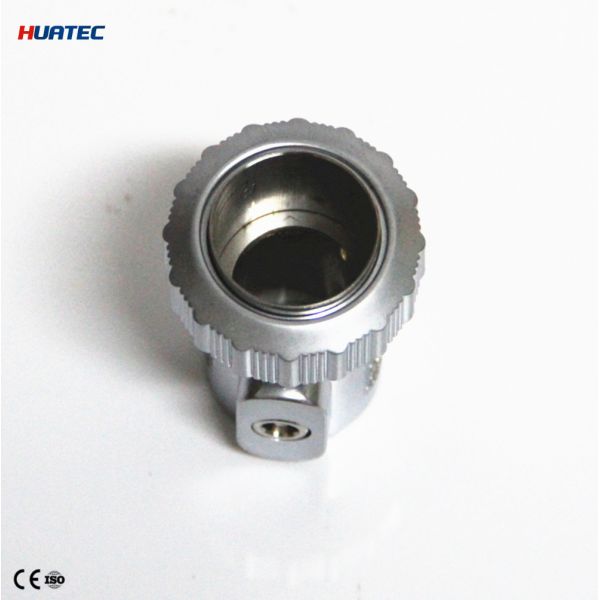

2MHz 4MHz 6MHz Ultrasonic Straight Beam Probe , Dual Element Probe

Name: 2MHz 4MHz 6MHz Ultrasonic Straight Beam Probe Dual Element Probe
Brand: HUATEC
Price: 1 USD

Buy cheap 2MHz 4MHz 6MHz Ultrasonic Straight Beam Probe , Dual Element Probe product

Brand Name : HUATEC

Model Number : HFD

Certification : CE, ISO

Place of Origin : China

MOQ : 1 pc

Payment Terms : TT, L/C, Western Union

Supply Ability : 1000 pcs per month

Delivery Time : 3-7 working days

Packaging Details : Carton

Probe Type : Dual straight probe

Specification : 2/10-2M

Transducer element* diameter : Ø 10mm

Frequency : 2MHz 4MHz 6MHz

Contact Now

Ultrasonic Straight Probe of Dual Element Probe With 2MHz 4MHz 6MHz

We can provide customers with more than 500 kinds of ultrasonic flaw detection probes,angle probes,variable angle probes,four-crystal probes,immersion focusing probes and othe conventinal probes.

Character:

(1) Wall thickness margin, rust-eaten, corrosion.

(2) Near surface flaw detection.

(3) Small parts-screws, bolts, pin.

(4) Adhesive detection.

(5) Shaft, rod, billet core defects.

(6) Train wheels.

(7) Shaft, rod, billet core defects.

Funtion:

(1) Near surface resolution is excellent.
(2) Scattered noise is small.
(3) Probes interface for national standard.

(4) Most Europe standard probe with LEMO connector, microdot connector(sidepiece or top direction).

Specification:

Probe type	Designation	Transducer element* diameter[mm]	Frequency[MHz]
Dual straight probe	PQ 2/10-2M	Ø 10	2 MHz
	PQ 2/10-4M	Ø 10	4 MHz
	PQ 2/10-6M	Ø 10	6 MHz
	PQ 2/20-2M	Ø 20	2 MHz
	PQ 2/20-4M	Ø 20	4 MHz
	PQ 2/20-6M	Ø 20	6 MHz

2MHz 4MHz 6MHz Ultrasonic Straight Beam Probe , Dual Element Probe

Testing Curve Report for a Transducers (optional by order)

OEM service accepted for different size and freqency probe

Product Tags:

ut probe

ultrasonic testing probes

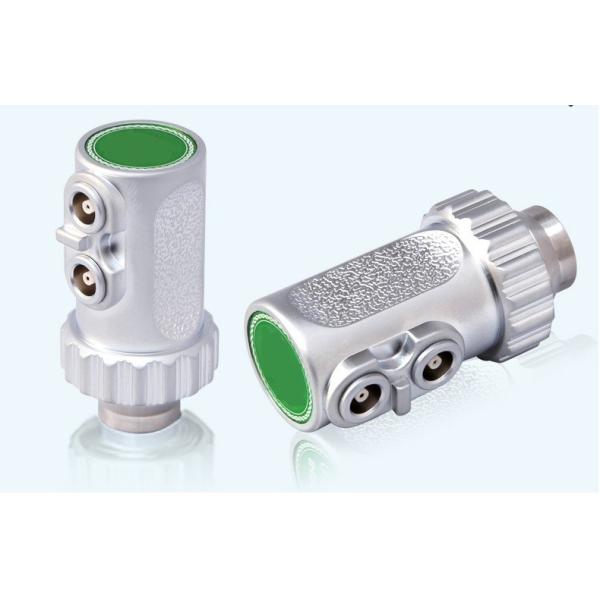

2MHz 4MHz 6MHz Ultrasonic Straight Beam Probe , Dual Element Probe Images
